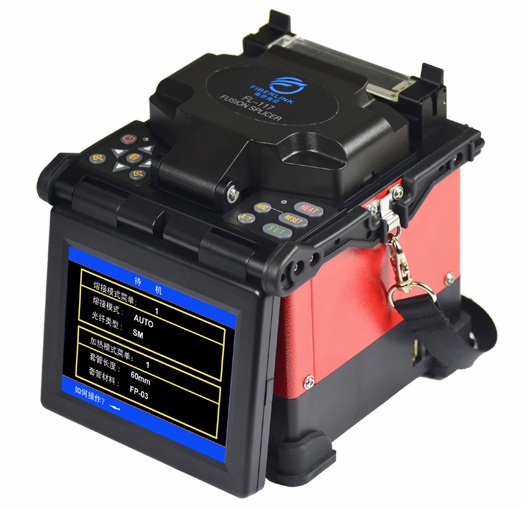

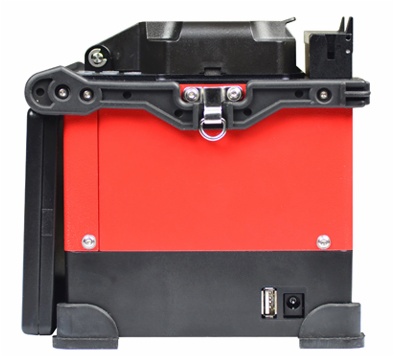

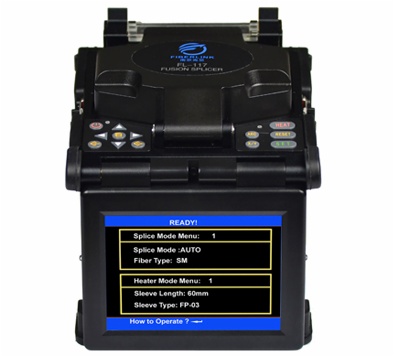

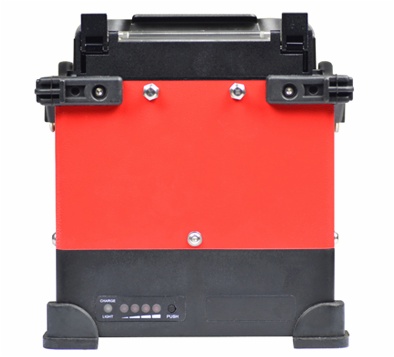

Fusion Splicer FL-117

f117-1f117-2f117-3f117
● Used for FTTH and ordinary fiber project
● Core to core alignment by PAS technology
● 8 sec splicing time and 30 sec heat time
● 300 X or Y view, 200 X and Y view
● 5 inch digital high-quality LCD screen, observe X and Y view at same time
● Three in one fixture, splicing single fiber, cable indoor and pig tail
● Built in large capacity lithium battery of 200 times splicing and heating
● Small size and light weight, 2.1KG including battery
Category:

Product Description

Model FL-117 FTTH Fusion Splicer
Splicing Type SM, MM, DS, NZDS
Splicing Loss 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Return Loss >60dB
Splicing Mode Manual, Half Auto, Auto
Fiber Alignment Core to Core Alignment by PAS technology
Applicable Fiber Cable indoor and 0.25mm,0.9mm fiber,   SC connector(option)
Splicing Time ≤9s
Heat Time ≤30s
Cleaved Length 8~16mm
Fiber Image/ Magnification 300/200
View Display 5 inch digital high-quality LCD screen
Tension Test Standard 2N (option)
Heat Shrinkable Sleeve 60mm, 40mm and serials heat Shrinkable Sleeve
Battery Capacity 200 cycles splicing and heating, 3 hours charging time
( splicing and charging at same time)
Battery Life Cycling charge 300-500 times, easy to replace battery
Electrodes Life 3000, easy to replace electrodes
Power Source ≤20W
Interface USB Convenient data download and software update
Construction Lighting Built in high brightness, wide range of lights, easy to operate at night
Power supply Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A
Operating Condition 0-5000m above sea level, Temperature: -10-60℃,
Humidity:0~95%RH (No dew)
Weight (including battery) 2.1 KG (including battery)
Dimension (LxWxH) 135mm(L)×158mm(W)×155mm(H)









Standard Configuration
No Items Qty
1  Fusion Splicer (FL-117) 1 set
2  Fiber Cleaver 1 pc
3  Fiber Stripper 1 pc
4  AC Adaptor 1 pc
5  Li Battery 1 pc
6  Charger 1 pc
7  Spare Electrodes 1 pair
8  Cooling Tray 1 pc
9  User Manual CD 1 pc
10 Carrying Case 1 pc
